Leura Passive House
Residential: Single Dwelling
Passivhaus Plus Certification
Leura, NSW, 2022
Set in in the relatively cool climate of the Blue Mountains, Leura Passive House was based on an existing Blue Eco Homes concept design. The plan was altered to suit the clients needs and to meet Passivhaus Plus standard.
-
AIRTIGHTNESS n50 ACH@50pascals: 0.649
HEATING DEMAND (kWh/m².yr): 10.45
COOLING DEMAND (kWh/m².yr): 1
HEATING LOAD (W/m²): 12.3
COOLING LOAD (W/m²): 15
PRIMARY ENERGY RENEWABLE DEMAND (PER): 35
PRIMARY ENERGY DEMAND (PE) (kWh/m².yr): 75
PRIMARY ENERGY RENEWABLE GENERATION (PER): 64 -
PROJECT NAME: Leura Passive House
LOCATION: Leura, Blue Mountains, NSW
NCC CLIMATE ZONE: 6 – Mild temperate
NATHERS CLIMATE ZONE: 24
YEAR OF COMPLETION: 2022
TREATED FLOOR AREA (PHPP sqm): 142
PROJECT TYPE: New Build
BUILDING TYPE: Residential: Single Dwelling
CONSTRUCTION TYPE: Timber Frame
CERTIFICATION LEVEL/ ENERGY STANDARD: Passivhaus Plus -
PREFAB ELEMENTS MANUFACTURER: Blue Eco Homes
MHRV SYSTEM: Brink Flair 325
DOMESTIC HOT WATER SYSTEM: Sanden Heat Pump
EXTERIOR WALL TYPE: Insulated 140mm timber stud
EXTERIOR WALL U - VALUE: 0.251
FLOOR SLAB TYPE, U-VALUE: Concrete with 100mm PIR topping, then topping slab, 0.625
ROOF INSULATION TYPE, MANUFACTURER: Knauf Earthwool

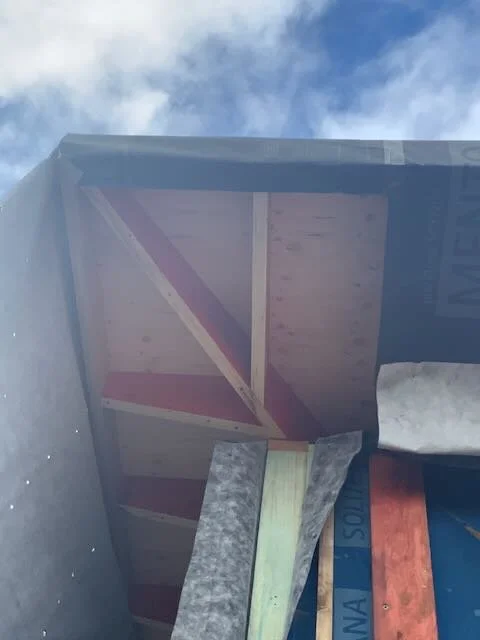

ROOF CONSTRUCTION: Timber frame
ROOF ENVELOPE U-VALUE: 0.150
WALL FRAME TYEPE, U-VALUE (if applicable): 140mm timber frame, 0.251
GLAZING TYPE, MANUFACTURER, G-VALUE, U G-VALUE, U W-VALUE: Triple glazing, Kinzel Windows, 0.49, 0.54 & 0.73, 0.91-1.36
EXTERNAL DOOR TYPE, MANUFACTURER, U D-VALUE: Triple glazed glass, Kinzel, 1.17 -
NUMBER OF MODULES: 16
HEIGHT, WIDTH OF ONE MODULE (m, m): 1.754 x 1.095
HEIGHT OF ARRAY: 3
EFFICIENCY ( %): 98
-
The roof was pitched upwards to the north to allow for high windows so as to let in northern winter sun but at the same time not be impacted by the neighbouring home. This meant solar panels had to be placed on a rack to get northern exposure. A pergola was placed on the east to shade the large eastern glass door facing the view & accessing an outdoor entertaining area.
-
The climate was quite cold by Australian standards. The northern side of the block faced a neighbouring house with a long, stark brick wall. Additionally there was some shading on this elevation by trees. The best views were of the garden to the east.
Project Members
ARCHITECT/ BUILDING DESIGNER: Mark Davis Design - Kresho Srpak
BUILDER/ CONTRACTOR: Blue Eco Homes
PASSIVHAUS CONSULTANT/ DESIGNER: Kresho Srpak & Mark Davis PASSIVHAUS CERTIFIER : Marcus Strang
STRUCTURAL ENGINEER: Partridge Partners
MURAL DESIGNER: Lymesmith
WINDOW SUPPLIER: Kinzel
HRV SUPPLIER: Vector HRV
BLOWER DOOR TESTER: Astera
PHOTOGRAPHER: Open2view
